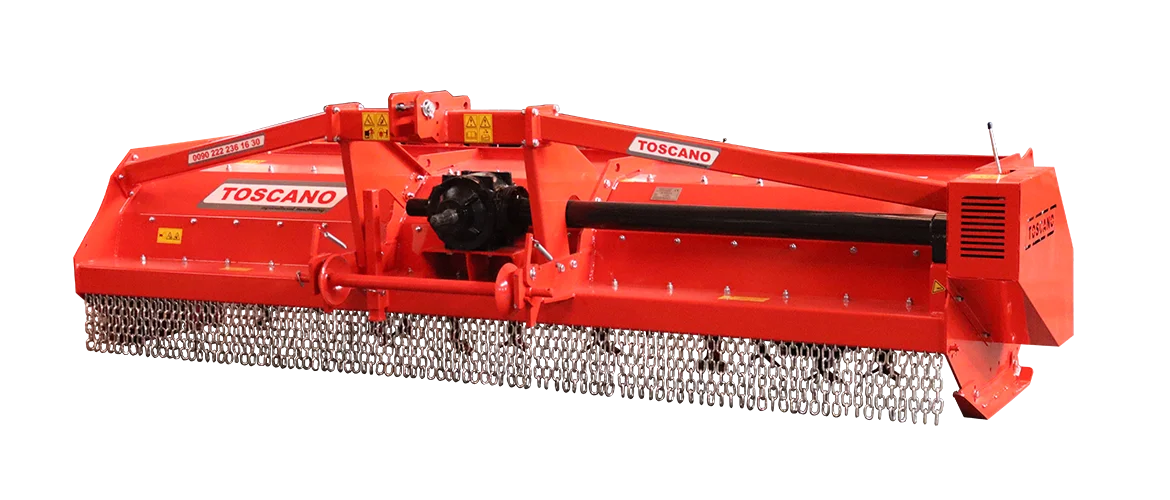

TOSCANO SHREDDER – STANDARD
ABOUT PRODUCT
Flail shredder; also known as Flail Mower or Chopper; is used to shred plant wastes after harvest. All the plant wastes and residues got broken in very little pieces. With the process, residues can dissolve in the soil easily. The process enhances soil microorganisms, so; soil quality. It can be also used as weed mower if needed.
- Plant wastes will be mixed with soil, therefore soil recovers its organic material.
- It also shreds the wet plant wastes and stems.
- It can be used for living plant stem and branch mowing too.
- Wider working width saves time and fuel in large fields.
STANDARD EQUIPMENT
- Universal 3-point CAT II Linkage
- Tractor Side 1 3/8’’ Z:6 Spline PTO protective shaft
- 750 rpm PTO Gearbox provides 1765 rpm Rotor Speed
- Transmission group with single-point lubrication
- Front chains for protection

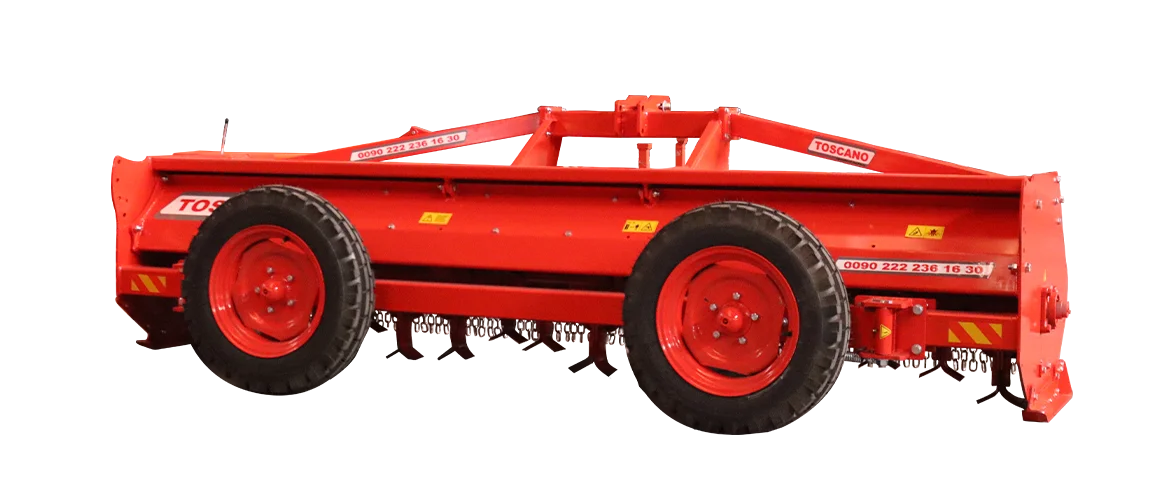

- 2 mobile wheels with height adjustment
- External tension adjustment for transmission belts
- Adjustable Skid
- 3-Point Receiver
- Rotor diameter Ø194mm
- Y Type blade is standard.
ADJUSTABLE BODY GUIDES
HAMMER BLADES
“Y” TYPE BLADE + FLAT BLADE
“Y” TYPE BLADE + SHEET BLADE
TURBO “Y” TYPE BLADE
LARGE WHEEL

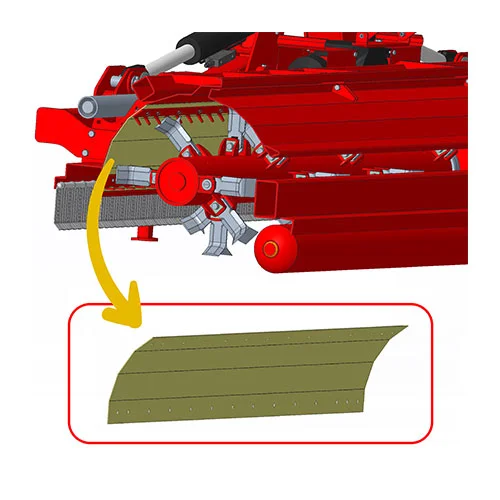

BODY REINFORCEMENT PLATE
| Shredder | Power of Tractor | Work Width | Total Width | Blade Quantity | Weight | PTO | Belt |
| Type | kW / HP | Cm | Cm | Quantity | Kg | RPM | Quantity |
| 2400 | 41-74 / 55-100 | 230 | 265 | 48 | 750 | 750 | 6 |
| 2800 | 51-74 / 70-100 | 270 | 300 | 56 | 900 | 750 | 6 |
| 3200 | 60-82 / 80-110 | 310 | 345 | 72 | 1100 | 750 | 6 |
For each product, Toscano brand holds quality certificates shown below.
To claim its’ document records, do not hesitate to contact us.
TECHNICAL DETAILS
HIGH QUALITY BLADES
Italian made, Durable blades.
LOCKING SYSTEM
Developed by Toscano. An automatic locking system.
STRONG PTO GEARBOX
PTO Gearbox with 750 RPM
Rotor Speed 2000 RPM
TRANSMISSION
6 pcs of adjustable belts with an aluminum stretching device.
IN-CHASIS SHREDDER
Shreds the material to smaller pieces with angle-adjusted barbed components.
LUBRICATION IN A SINGLE POINT
All transmission components can be oiled from a single point.
SAFETY CHAINS
Steel chains prevents small pieces to thrown out of machine.
