TOSCANO PNEUMATIC SEEDER TELESCOPIC FOLDING – AXE TYPE
ABOUT PRODUCT
Pneumatic Precision Seeding Machine: Precisely sowing seeds in any soil condition in the desired range. Can be used for sunflower, corn, cotton, beet, soy, beans, chickpeas, zucchini and other seeds that require precision sowing.
- Since the machine is disc type, plant wastes in the field does not prevent the machine from operating.
- Wheels on both sides of the units adjusts the depth precision of the machine.
- Missing or excessive seed is prevented with it’s 12 step precision sowing settings
- V shaped pressure wheels compresses the seed and prevents unwanted layers on top.
- Sowing row space can be adjusted via bolts.
- When the sowing is done, seeds can be emptied by the seed tank cap.
EQUIPMENTS STANDARD
- Universal 3- point CAT II linkage
- 1 3/8’’ Z:6 spline PTO protective shaft
- Marker with hydraulic system
- Double seed singulator inside and outside
- Electronic decameter
- Distance between units: 45-80 cm
- Required horsepower: 130 HP
- Seed tank capacity: 34lt / box
- Fertilizer unit capacity: 1000 lt
![Tipi-Arka-Baskı-Tekeri](https://toscano.com.tr/wp-content/uploads/2022/10/Tipi-Arka-Baski-Tekeri.jpg)
“V” TYPE WHEEL (Per Unit)
![Ön-Disk-Komplesi](https://toscano.com.tr/wp-content/uploads/2022/10/On-Disk-Komplesi.jpg)
FRONT CLEANER DISC (Per Unit)
![front_chisel_toscano](https://toscano.com.tr/wp-content/uploads/2022/05/front_chisel_toscano.jpg)
FRONT CHISEL (Per Unit)
![toscano_tohum_akis_kontrol_cihazi](https://toscano.com.tr/wp-content/uploads/2021/01/toscano_tohum_akis_kontrol_cihazi.jpg)
COMPLETE PRESS WHEEL
(Per Unit)
![arka_kapatici_tip_1_toscano](https://toscano.com.tr/wp-content/uploads/2022/05/arka_kapatici_tip_1_toscano.jpg)
SEED COVERIN LEGS (Per Unit)
![seed_flow_control_device_toscano](https://toscano.com.tr/wp-content/uploads/2020/12/seed_flow_control_device_toscano-1.jpg)
SEED FLOW CONTROL DEVICE
![micro_granule_unit_toscano (1)](https://toscano.com.tr/wp-content/uploads/2022/12/micro_granule_unit_toscano-1.jpg)

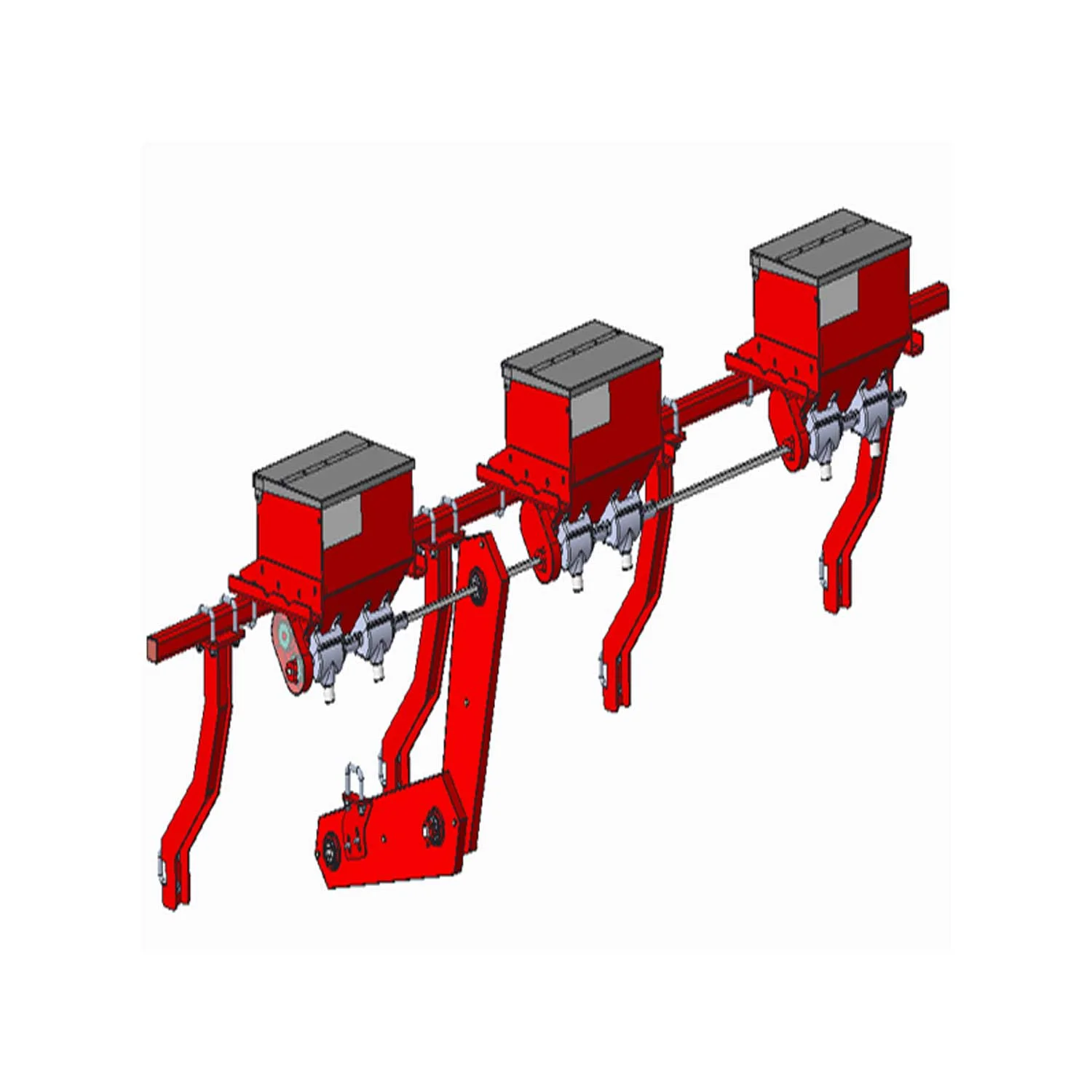

MICRO GRANULE UNIT
![SİNYALİZASYON](https://toscano.com.tr/wp-content/uploads/2023/12/SINYALIZASYON.png)
SIGNALISATION SYSTEM
Without Fertilizer
Pneumatic Seeder Telescopic Folding – Axe Type | Power of Tractor | Total Max. With | Road Width | Weight Without Fertilizer | PTO | Capacity of the Seed Unit | Distance Between Rows | |
Type | kW / HP | Cm | Cm | KG | RPM | L | Cm | |
8 Units | 95-117 / 130 -160 |
580 | 350 | 1650 | 1000 | 34×8 | 45-70 55-60 65-70 75 |
With Fertilizer
Pneumatic Seeder Telescopic Folding – Axe Type | Power of Tractor | Total Max. With | Road Width | Weight With Fertilizer | PTO | Fertilizer Unit Capacity | Capacity of the Seed Unit | Distance Between Rows |
Type | kW / HP | Cm | Cm | KG | RPM | L | L | Cm |
8 Units | 95-117 / 130 -160 |
580 | 350 | 2300 | 1000 | 1000 | 34×8 | 45-50 55-60 65-70 75 |
For each product, Toscano brand holds quality certificates shown below.
To claim its’ document records, do not hesitate to contact us.
