MULCHER DOUBLE-SIDED - HEAVY DUTY ( Model 2 )
ABOUT PRODUCT
Mulcher is used for pulverizing pieces of post-harvest stems and branches on vineyards, orchards, gardens and small fields. Can be used as weed mower if needed.
- Shreds and mixes the unwanted pieces of stems and branches with soil on olive gardens, vineyards and orchards.
- With it’s sliding hydraulic system, it can be operated close to trees and shreds the wastes of knot and bushes.
- Easily shreds the wet plant wastes and stems.
- Can be used as plant and stem mower too.

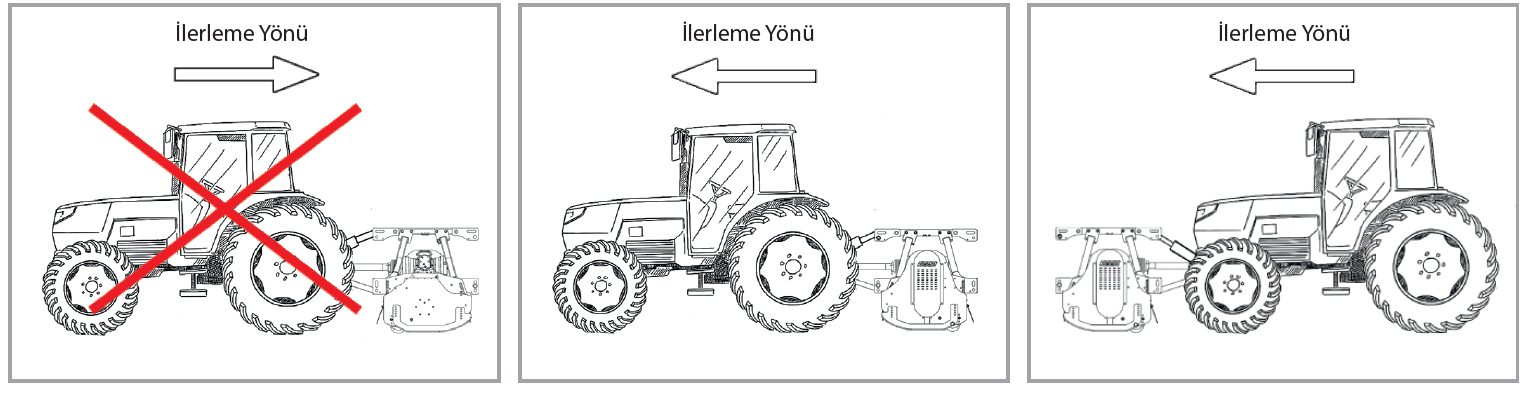

- With double side mounting option, it enables the operator to work forwards and backwards.
STANDARD EQUIPMENT
- International 3-point CAT II Linkage System
- 1 3/8’’ Z:6 diameter 6-spline PTO protected shaft
- 1000 RPM PTO; gearbox providing 1930 RPM rotor speed
- 120 mm length hammer blades
- 6 drive belts; transmission group with single-point lubrication
- Height-adjustable flat roller
- Front protection chains and rubber flaps
- Rear protection rubber flaps
- Double-walled chassis (inner reinforcement plate standard)
| Mulcher Double Sided H.D 1 | Power of Tractor | Work Width | Total Width | Blade Quantity | Weight | PTO Revolution | Shift Capacity |
| Type | kW / HP | Cm | Cm | Quantity | Kg | RPM | Cm |
| 2000 | 51-147 / 70-200 | 200 | 225 | 20 | 942 | 1000 | 55-95 / 145-105 |
| 2400 | 59-147 / 80-200 | 240 | 265 | 24 | 1028 | 1000 | 70-120 / 170-120 |
| 2800 | 66-147 / 90-200 | 280 | 305 | 28 | 1114 | 1000 | 90-140 / 190-140 |
| 3200 | 73-147 / 100-200 | 320 | 345 | 32 | 1200 | 1000 | 110-160 / 210-160 |
For each product, Toscano brand holds quality certificates shown below.
To claim its’ document records, do not hesitate to contact us.
You can access the user manual of the machine by contacting us via email at sales@toscano.eu.com.
TECHNICAL DETAILS
DURABLE BLADES
Italian Made; High Quality Blades
LUBRICATION IN A SINGLE POINT
All transmission components can be oiled from a single point.
