TOSCANO SUBSOILER – HEAVY DUTY
ABOUT PRODUCT
The primary tillage equipment subsoiler; rips the deep soil layers. It tills the soil without turning over. It can be used in hard and cloddy soils. It breaks soil layers and cause healthy root growth. The pointed roller behind the equipment creates smoother surface.
- It does not overturn the soil; the soil keeps its moisture.
- Breaks the deep soil layers; supports vertical root growth for the plants.
- Ventilates the soil and creates water reservoir below the surface.
- Roller options are available for operating on different soil structures.
STANDARD EQUIPMENT
- Universal 3-point CAT II Linkage
- Safety shear bolt system
- 2 pointed rollers
- Hydraulic double roller pistons
- Depth adjustment indicator
SIDE PLATES
Heavy-Duty Type Subsoiler | Power of Tractor | Work Width | Total Width | Number of Legs | Weight | Cultivation Depth |
Type | kW / Hp | Cm | Cm | Pcs | Kg | Cm |
2500 / 5 | 155-288 / 210-310 | 250 | 257 | 5 | 2300 | 70 |
3000 / 7 | 192-265 / 260-360 | 300 | 300 | 7 | 2720 | 70 |
3500 / 7 | 192-265 / 280-360 | 350 | 357 | 7 | 2870 | 70 |
4000 / 9 | 228-295 / 310-400 | 400 | 407 | 9 | 3420 | 70 |
Heavy-Duty Type Subsoiler | Power of Tractor | Work Width | Total Width | Number of Legs | Weight | Cultivation Depth |
Type | kW / Hp | Cm | Cm | Pcs | Kg | Cm |
2500 / 5 | 126-162 / 170-220 | 250 | 257 | 5 | 2220 | 55 |
3000 / 7 | 156-201 / 210 -270 | 300 | 300 | 7 | 2590 | 55 |
3500 / 7 | 156-201 / 210 – 270 | 350 | 357 | 7 | 3710 | 55 |
4000 / 9 | 162-246 / 220-330 | 400 | 407 | 9 | 3220 | 55 |
5000 / 11 | 186-290 / 250-390 | 500 | 507 | 11 | 3650 | 55 |
For each product, Toscano brand holds quality certificates shown below.
To claim its’ document records, do not hesitate to contact us.
TECHNICAL DETAILS

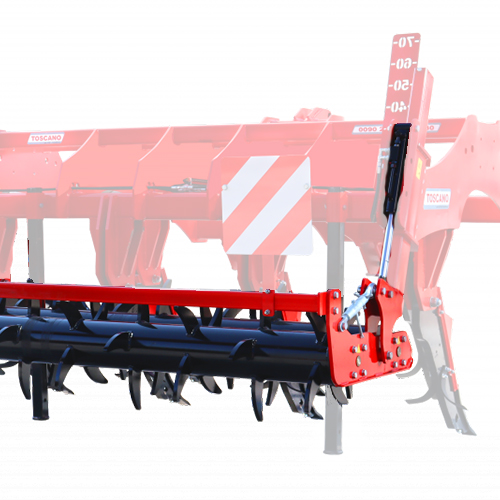

DOUBLE HYRAULIC ROLLER
Roller can be adjusted with double hydraulic system.
SAFETY PIN SYSTEM
When the eqipment encounters a hard obstacle, the pin gets off and it avoids possible damages in the equipment and the tractor.
WORKING DEPTH ADJUSTMENT
The adjustable roller part enables to adjust working depth by pin bolts.
PIN STOCK
Pin stock attached to the equipment provides carrying convenience.
